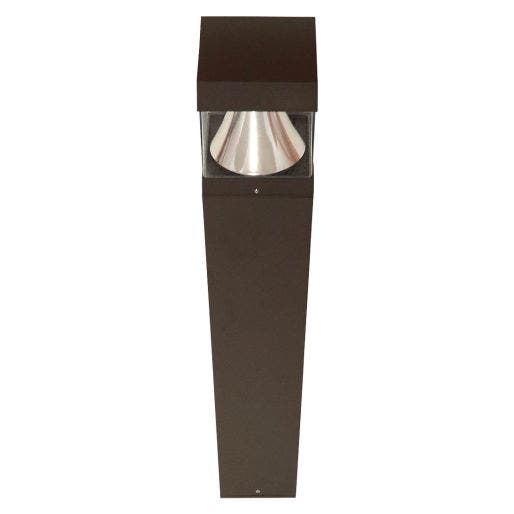

C-Lite Square LED Bollard | CCT & Wattage Selectable | C-BD-A-BP Series | Up to 3000 Lumens | Bronze
Ships in: 3-5 Days
Your Price $264.99 $299.99
SKU: C-BD-A-BPSQ-S3L-SCCT-UL-BZ
Replaces 100W PSMH
Up to 3000 Lumens
Up to 3000 Lumens
Product Overview
Replaces 100W PSMH. C-Lite Square LED Bollard with up to 3000 delivered lumens, up to 24W, CCT Selectable options: 3000K, 4000K or 5000K. IP65 Rated, UL Listed, 5-year limited warranty.
Added Benefits:
- Selectable Color Temperatures: 3000K, 4000K or 5000K options
- Selectable Wattages: 24W, 18W or 14W
- 80+ CRI for high quality lighting
- 0-10v dimming with dimming leads available for use in the field
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec sheet: C-BD-A-BP-SCCT Series Download File
- IES Files: C-BD-A-BPSQ Series Download File
- Instruction Manual: C-BD-A-BPSQ Series Download File
Specifications
- Applications Entryways, General Area Lighting, Pathways & Walkways
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 1
- Certifications UL Listed, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
- Color Accuracy ≥ 80 CRI
- Dimensions 42" Tall x 6-3/8" Square
- Housing Die-cast aluminum housing powder coated with bronze
- Input Voltage Universal (120V - 277V)
- Lens Material High impact polycarbonate lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 3000 Lumens
- Mounting Details Mounts using anchor bolts, 4 bolt system
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption Up to 24W
- Replaces 100W PSMH
- Shipping Weight 12.00 (lbs.)
- Typical Mounting Height 0 to 10 Feet
- warranty 5-Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-Lite Square LED Bollard | CCT & Wattage Selectable | C-BD-A-BP Series | Up to 3000 Lumens | Bronze Your Price $264.99 $299.99
C-BD-A-BPSQ-S3L-SCCT-UL-BZ
Replaces 100W PSMH
Up to 3000 Lumens
Up to 3000 Lumens
Up to 24W
Universal (120V - 277V)
5-Year
Yes
UL Listed, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
1
Die-cast aluminum housing powder coated with bronze
Mounts using anchor bolts, 4 bolt system
High impact polycarbonate lens
Selectable, 3000K, 4000K, 5000K
C-BD-A-PWY-S3L-SCCT-UL-BZ
Replaces 100W PSMH
Up to 3600 Lumens
Up to 3600 Lumens
Up to 30W
Universal (120V - 277V)
5 Year
Yes
UL Listed, Wet Locations, Dimmable, RoHS
N/A
Bronze extruded aluminum tube with die-cast aluminum light assembly
Mounts via 3 bolt anchor system. Anchor bolts and template are included. Base includes quick connectors allowing the fixture to be removed and set off to the side preventing scratches or damage during install.
Clear UV-resistant polycarbonate
Selectable, 3000K, 4000K, 5000K
