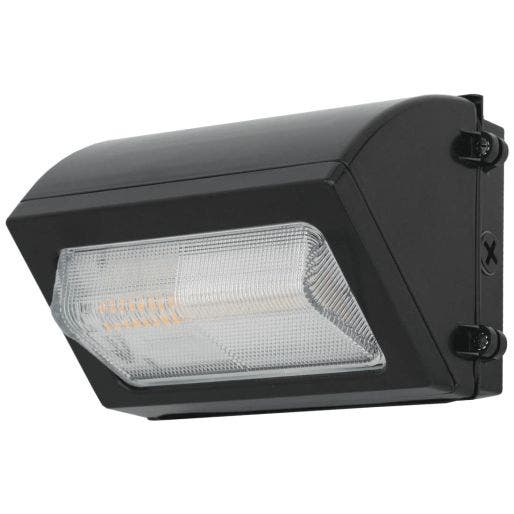

C-Lite Traditional Style LED Wall Pack w/ Glass Lens | CCT & Wattage Selectable | C-WP-E-TR-SCCT Series | Up to 6275 Lumens | Dark Bronze
Back-Order: Available by 05/14/2024
$69.99
SKU: C-WP-E-TR-S6L-SCCT-UL-DB
Replaces 175W MH
Up to 6275 Lumens
Up to 6275 Lumens
Product Overview
Replaces 175W MH. Up to 48W C-Lite Traditional Style LED Wall Pack w/ glass lens, with Selectable CCT and wattage, up to 6275 delivered lumens, dark bronze housing. Field selectable CCT options: 3000K, 4000K or 5000K. Field selectable wattage options: 48W, 38W or 25W. cULus Listed, 5-year limited warranty.
Additional Benefits:
- Borosilicate prismatic glass lens
- Field selectable wattage: 100%, 75% or 50% output
- Field selectable CCT: 3000K, 4000K or 5000K
- Extremely efficient with over 157LPW (Lumens Per Watt) on certain wattages
- Super easy installation - designed with you in mind
Guides & Info
- Instruction Manual: C-WP-E-TR-SCCT Series Download File
- Spec Sheet: C-WP-E-TR-SCCT Download File
- IES Files: C-WP-E-TR-S6L-SCCT series.zip Download File
Specifications
- Applications Entryways, General Area Lighting, Perimeter Lighting, Storage Facilities
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 6
- Certifications cULus, Wet Locations, Dimmable, DLC Standard, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 9-1/2" L x 6-1/4" W x 6" H
- Housing Dark bronze powder coated finish with heavy-duty die-cast aluminum housing.
- Input Voltage Universal (120V - 277V)
- Lens Material Borosilicate prismatic glass lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 6275 Lumens
- Mounting Details Three 1/2" threaded KO's (Knock Outs) for mounting using surface conduit or mount over a j-box, 3" octagonal or 4" octagonal boxes.
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 48W, 38W or 25W
- Replaces 175W MH
- Shipping Weight 3.82 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5-year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WP-E-TR-S6L-SCCT-UL-DB
Replaces 175W MH
Up to 6275 Lumens
Up to 6275 Lumens
48W, 38W or 25W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Standard, RoHS
6
Dark bronze powder coated finish with heavy-duty die-cast aluminum housing.
Three 1/2" threaded KO's (Knock Outs) for mounting using surface conduit or mount over a j-box, 3" octagonal or 4" octagonal boxes.
Borosilicate prismatic glass lens
Selectable, 3000K, 4000K, 5000K
GKOWP0840W27V40KD
Replaces 175W MH
4637 Lumens
4637 Lumens
40W
Universal (120V through 277V Operation)
5 Year
Yes
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Medium bronze, rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts.
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
4000K
GKOWP0840W27V50KD
Replaces 175W MH
4650 Lumens
4650 Lumens
40W
Universal (120V through 277V Operation)
5 Year
Yes
UL Listed, Wet Locations, DLC Standard, RoHS
N/A
Medium bronze, rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts.
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
5000K
savr® Traditional Style LED Wall Pack w/ Photocell | E-WFTxxC Series | 6375 Lumens | 3000K | Bronze Your Price $64.99 $69.99
E-WFT06C-N30BP
Replaces 175MH
6375 Lumens
6375 Lumens
46W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
N/A
Durable die-cast alumuminum housing with reliable bronze powder coated finish
Slots provided in quick mount bracket for mounting over a 4” square or octagonal j-box. 1/2” conduit openings provided on the sides of the fixture. 3/4” conduit opening provided on bottom surface of the fixture for surface conduit mount.
High-impact UV stabalized polycarbonate
3000K
savr® Traditional Style LED Wall Pack w/ Photocell | E-WFTxxC Series | 6525 Lumens | 4000K | Bronze Your Price $64.99 $69.99
E-WFT06C-N40BP
Replaces 175MH
6525 Lumens
6525 Lumens
46W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
N/A
Durable die-cast alumuminum housing with reliable bronze powder coated finish
Slots provided in quick mount bracket for mounting over a 4” square or octagonal j-box. 1/2” conduit openings provided on the sides of the fixture. 3/4” conduit opening provided on bottom surface of the fixture for surface conduit mount.
High-impact UV stabalized polycarbonate
4000K
savr® Traditional Style LED Wall Pack w/ Photocell | E-WFTxxC Series | 6525 Lumens | 5000K | Bronze Your Price $64.99 $69.99
E-WFT06C-N50BP
Replaces 175MH
6525 Lumens
6525 Lumens
46W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
N/A
Durable die-cast alumuminum housing with reliable bronze powder coated finish
Slots provided in quick mount bracket for mounting over a 4” square or octagonal j-box. 1/2” conduit openings provided on the sides of the fixture. 3/4” conduit opening provided on bottom surface of the fixture for surface conduit mount.
High-impact UV stabalized polycarbonate
5000K
OWG3050MV50BZ
Replaces 175W MH
7000 Lumens
7000 Lumens
50W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS, IP65
1
Bronze, die-cast aluminum housing
J-box or surface conduit mount options
Tempered clear prismatic glass maximizes lumen output
5000K
