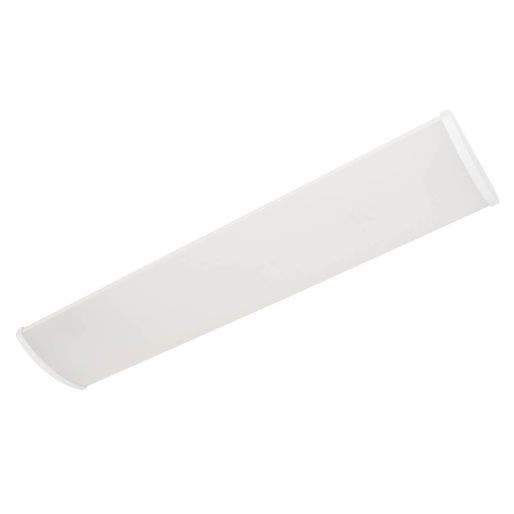

C-Lite Wide LED Wrap Light | CCT & Wattage Selectable | Up to 6800 Lumens | Emergency Battery Backup | 4-Foot | White
Your Price $189.99 $199.99
SKU: C-WR-A-WW4-S68L-SCCT-WH-EB
Replaces 3-Lamp 32WT8
Up to 6800 Lumens
Up to 6800 Lumens
Product Overview
Replaces 3-Lamp 32W T8 fixtures. C-Lite Wide LED Wrap with Integrated emergency battery backup, 4-foot length, color temperature selectable: 3000K/4000K/5000K and CCT Selectable: 26W/40W/55W. cULus Listed, 5-year limited warranty.
Additional Benefits:
- 90-minute integrated emergency driver with external test button
- 1kV surge protection
- 9-3/4" width (Compared to the standard 5-1/2" width)
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-WR-A-WW4-S68L Series Download File
- Spec Sheet: C-WR-A-WW4-S68L Series Download File
- IES File: C-WR-A-WW4-S68L-SCCT-WH (3000K) Download File
- IES File: C-WR-A-WW4-S68L-SCCT-WH (4000K) Download File
- IES File: C-WR-A-WW4-S68L-SCCT-WH (5000K) Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Manufacturing, Offices, Residential, Retail, Storage Facilities, Task & Workshop Lighting, Warehouses
- Emergency Backup Yes
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Certifications cULus, Dry Locations, DLC Standard, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 47-1/4" L x 9-3/4" W x 3-5/16" H
- Housing High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil. thickness for superior corrosion resistance and maximum environmental durability
- Input Voltage Universal (120V - 277V)
- Lens Material Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 6800 Lumens
- Mounting Details Keyhole slots for surface mounting, various knockouts provided for wiring entry
- Operating Temperature Maximum 113°F (45°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 26W/40W/55W
- Replaces 3-Lamp 32WT8
- Shipping Weight 7.41 (lbs.)
- Typical Mounting Height 10 to 15 feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-WR-A-WW4-S68L-SCCT-WH-EB
Replaces 3-Lamp 32WT8
Up to 6800 Lumens
Up to 6800 Lumens
26W/40W/55W
Universal (120V - 277V)
5 Year
Yes
cULus, Dry Locations, DLC Standard, RoHS
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3mil. thickness for superior corrosion resistance and maximum environmental durability
Keyhole slots for surface mounting, various knockouts provided for wiring entry
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
FXCWS44SW-48FR-8CCT3
Replaces 3-Lamp T8 32W fixtures
Up to 6063 Lumens
Up to 6063 Lumens
22/28/34/44W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, DLC Premium, Title 24, RoHS
White powder-coat finish, stamped aluminum housing
Keyhole slots for surface mounting, various knockouts provided for wiring entry
Polycarbonate
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT-WH-PIR
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
PIR Sensor
Up to 5800 Lumens
PIR Sensor
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT-WH-MW
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Microwave Sensor
Up to 5800 Lumens
Microwave Sensor
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT-WH-EB
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Emergency Battery Backup
Up to 5800 Lumens
Emergency Battery Backup
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, DLC Standard, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT-WH-PIR-EB
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
PIR Sensor
Emergency Battery Backup
Up to 5800 Lumens
PIR Sensor
Emergency Battery Backup
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT-WH-MW-EB
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Microwave Sensor
Emergency Battery Backup
Up to 5800 Lumens
Microwave Sensor
Emergency Battery Backup
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
C-WRT4-A-S58L-SCCT
Replaces 2-Lamp 32WT8
Up to 5800 Lumens
Up to 5800 Lumens
30W/35W/41W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, DLC Standard, RoHS
Durable, commercial quality, cold-rolled steel with a white powder coat finish
Surface mount
Frosted PMMA diffuser lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
