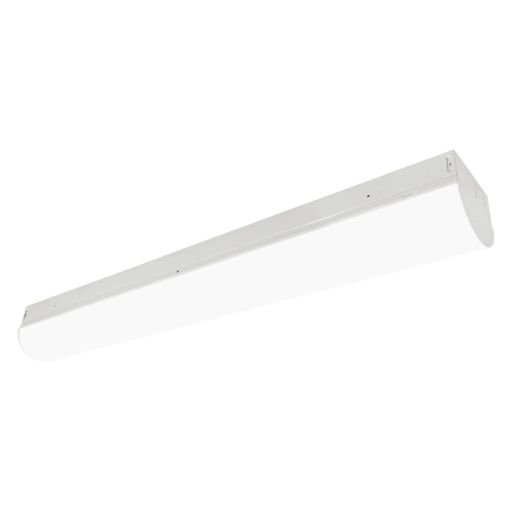

C-Lite LED Stairwell Light w/ Microwave Occ. Sensor | With or Without Emerg. Battery Backup | C-SW-B Series | CCT & Wattage Selectable | Up to 6000 Lumens | 120-277V | White
$139.99 - $309.99
SKU: C-SW-B-S60L-SCCT
Replaces 1-Lamp T5HO 54W
Up to 6000 Lumens
Up to 6000 Lumens
Product Overview
The C-Lite LED Stairwell light fixture is the perfect solution for your stairwell application needs. This 4-foot linear has field selectable CCT options of: 4000K or 5000K and wattage options of: 30W, 35W & 45W, delivering up to 6000 lumens. Available with or without an integrated microwave motion sensor and an optional 10W factory installed emergency battery backup. cULus Listed, 5-year limited warranty.
Additional Benefits:
- 10W Emergency Battery Backup provides 1300 lumens in EB mode (at 5000K)
- Default Sensor Settings:
- Sensitivity/Detection: 100%
- Hold Time: 5 seconds
- Stand-by Dimming Level: 10%
- Stand-by period: 0 seconds
- Daylight threshold: Disabled
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: C-SW-B Series Download File
- Instruction Manual: C-SW-B Series Download File
Specifications
- Applications Commercial, Educational Setting, Hallways & Stairways, Parking Garage Structures
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 4
- Certifications UL Listed, Damp Locations, Dimmable, RoHS
- Color Accuracy ≥ 80 CRI
- Dimensions 48-3/8" L x 4-3/8" W x 3-7/8" H
- Housing White, powder-coated steel housing
- Input Voltage Universal (120V - 277V)
- Lens Material Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 6000 Lumens
- Mounting Details Keyhole slots for surface mounting. Mounting hardware supplied by end user
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum -4°F (-20°C)
- Power Consumption 30W/35W/45W
- Replaces 1Â x F54T5HO
- Shipping Weight 9.46 (lbs.)
- Typical Mounting Height 0 to 10 feet
- warranty 5 year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-SW-B-S60L-SCCT
Replaces 1-Lamp T5HO 54W
Up to 6000 Lumens
Up to 6000 Lumens
30W/35W/45W
Universal (120V - 277V)
5 year
Yes
UL Listed, Damp Locations, Dimmable, RoHS
4
White, powder-coated steel housing
Keyhole slots for surface mounting. Mounting hardware supplied by end user
Integrated frosted PMMA (polymethyl methacrylate) diffuser lens
Selectable, 4000K, 5000K
C-STRIP-B-LIN4-S56L-SCCT-UL-WH
Replaces 1 x F54T5HO
Up to 5650 Lumens
Up to 5650 Lumens
22W/33W/45W
Universal (120V - 277V)
5 Year
Yes
cULus, Damp Locations, Dimmable, DLC Standard, RoHS
6
High quality steel with white polyester powder coat finish. Multi-stage coating process produces 3-mil thickness for superior corrosion resistance and maximum environmental durability.
Keyhole slots for surface mounting; or suspended mounting using hook and chain (sold separately)
Frosted polycarbonate diffuser lens for superior light uniformity and glare reduction
Selectable, 3000K, 4000K, 5000K
savr® Linear LED Strip Light | E-LSW Series | 4-foot | CCT & Wattage Selectable | Up to 5000 Lumens | With or Without Emergency Battery Backup | 120-277V | White Your Price $64.99 - $174.99 $64.99 - $304.99
E-LSWS05A
Replaces 1-lamp T5HO fixtures
Up to 5000 Lumens
Up to 5000 Lumens
25W/30W/35W
Universal (120V - 277V)
5 year
Yes
cULus, UL Listed, Damp Locations, Dimmable, RoHS
1
White powder coated steel housing
Keyhole slots for surface mounting to ceiling or wall
PMMA lens for superior light uniformity and glare reduction
Selectable, 3500K, 4000K, 5000K
