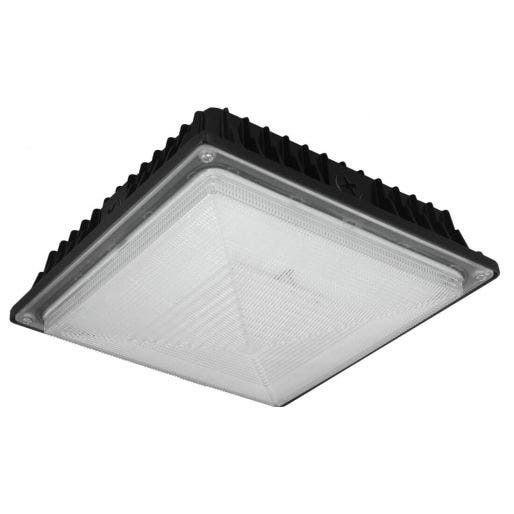

savr® Square LED Canopy Light | E-CSE Series | 11,100 Lumens | 80W | 5000K | Dark Bronze or White
$74.99
SKU: E-CSE11A
Replaces 320W PSMH
11,100 Lumens
11,100 Lumens
Product Overview
80W savr® Square LED Canopy Light, 11,100 delivered lumens, 5000K, dark bronze or white housing, 120-277V, 3-year limited warranty.
Additional Benefits:
- Mounts to surface, pendant or j-box
- Polyester powder-coat finish provides corrosion protection for long lasting color
- UV Stabilized acrylic lens designed to last a long time
- 0-10V Dimmable
Guides & Info
- You must configure your product to download IES file.
- Spec sheet: E-CSE Series Download File
- Instruction Manual: E-CSE Series Download File
Specifications
- Light Output 11,100 Lumens
- Power Consumption 80W
- Input Voltage Universal (120V - 277V)
- Dimensions 10" L x 10" W x 4" H
- Shipping Weight 5.04 (lbs.)
- Housing Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
- Case Quantity 6
- Mounting Details Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
- Typical Mounting Height 10 to 15 feet
- Certifications cULus, Wet Locations, Dimmable, RoHS
- warranty 3 year
- Color Accuracy ≥ 70 CRI
- Lens Material UV Stabilized acyrlic lens, designed to last a long time
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Applications Entryways, Exterior Canopies, Perimeter Lighting, Security
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-CSE11A
Replaces 320W PSMH
11,100 Lumens
11,100 Lumens
80W
Universal (120V - 277V)
3 year
Yes
cULus, Wet Locations, Dimmable, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface, j-box and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV Stabilized acyrlic lens, designed to last a long time
5000K
C-CP-D-SQ-S13L-50K-DB
Replaces 250W PSMH
Up to 13,500 Lumens
Up to 13,500 Lumens
Up to 88W
Universal (120V - 277V)
5 year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, IP65, RoHS
6
Dark bronze, low copper die-cast aluminum housing, polyester powder-coat.
Surface and pendant. Knockouts provided for mounting directly to 4" octagonal and 4" square j-boxes. Threaded 3/4" pendant mounting option from top surface. Threaded 1/2" conduit can be routed to sides of fixture for surface mounting.
UV-stabilized acrylic lens
5000K
