NaturaLED® LED Area Light | Type III | 13,783 – 14,100 Lumens | 4000K or 5000K | 120V-277V Operation | Bronze

OOS
$156.99

Knock this price down to $141.29. Join e-cono+ for free today .

SKU: FXCAL100
Replaces 400W MH
13,783 Lumens

Product Overview

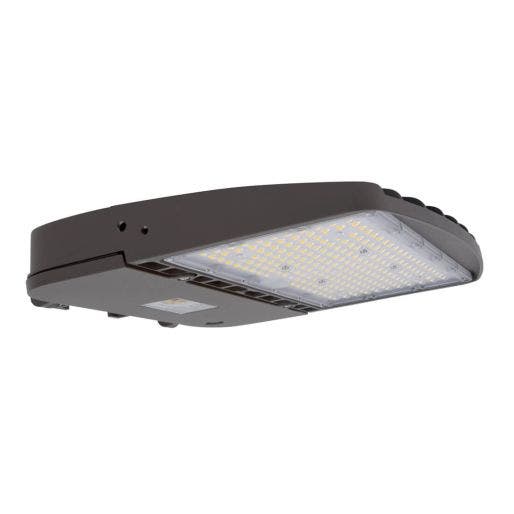

Replaces 400W MH (Metal Halide). 100W NaturaLED® Compact LED Area Light, 5000K with 13,783 Lumens, Type III optics, IP65 Rated, cULus Listed, 5-year warranty.

Additional Benefits:

  • 6kV Surge protection
  • Type IV and Type V lenses sold separately

Note: Please double check your drilling configuration on your light pole. If ordering this fixture with e-conolight light poles, drilling configuration should be 0 and the pole will need to be field drilled.

Guides & Info

  • You must configure your product to download IES file.

Specifications

  • Applications Auto Dealerships, General Area Lighting, Perimeter Lighting
  • FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
  • Certifications cULus, DLC Premium, Title 24, RoHS, Dimmable, IP65, Wet Locations
  • Color Accuracy ≥ 80 CRI
  • Dimensions 13-1/8" L x 14-3/8" W x 2-1/2" H
  • Housing Bronze, die-cast aluminum
  • Input Voltage Universal (120V - 277V)
  • Lens Material UV-resistant polycarbonate lens
  • Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
  • Light Output 13,783 Lumens
  • Mounting Details Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
  • Operating Temperature Maximum 113°F (45°C)
  • Operating Temperature Minimum -40°F (40°C)
  • Power Consumption 100W
  • Replaces 400W MH
  • Shipping Weight 6.28 (lbs.)
  • Typical Mounting Height 15 to 20 feet
  • warranty 5 Year

Accessories

NaturaLED® Lens Kit 100W/150W Type IV Lens for Area Light
NaturaLED® Lens Kit 100W/150W Type IV Lens for Area Light
$68.99
SKU: LENS-CAL-IV
For use with FXCAL Series only.
When purchased with FXCAL Series fixture, this optional accessory will be factory-installed prior to shipping.
NaturaLED® Lens Kit 100W/150W Type V Lens for Area Light
NaturaLED® Lens Kit 100W/150W Type V Lens for Area Light
$68.99
SKU: LENS-CAL-V
For use with FXCAL Series only.
When purchased with FXCAL Series fixture, this optional accessory will be factory-installed prior to shipping.
NaturaLED® Surge Protection 10KV 120-277V for Area Light
NaturaLED® Surge Protection 10KV 120-277V for Area Light
$45.99
SKU: SPD-L-10KV-277
For use with FXCAL Series only.
When purchased with FXCAL Series fixture, this optional accessory will be factory-installed prior to shipping.
NaturaLED® Surge Protection 20KV 120-277V for Area Light
NaturaLED® Surge Protection 20KV 120-277V for Area Light
$51.99
SKU: SPD-L-20KV-277
For use with FXCAL Series only.
When purchased with FXCAL Series fixture, this optional accessory will be factory-installed prior to shipping.

Customers Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.24ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 10.2ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Product Comparison

Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Additional Documents
FXCAL100
Replaces 400W MH
13,783 Lumens
100W
Universal (120V - 277V)
5 Year
Yes
cULus, DLC Premium, Title 24, RoHS, Dimmable, IP65, Wet Locations
Bronze, die-cast aluminum
Mounting sold separately; Pole mount, 2-inch adjustable slip fitter, yoke mount or wall mount
UV-resistant polycarbonate lens
GKOAL04100W27V50KDT3S-SPAL04DA
Replaces 250W PSMH
13,800 Lumens
100W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, DLC Premium, Wet Locations
Medium bronze, rugged single-piece, die-cast aluminum with integral heat sink fins
Slip Fitter Mount - A cast aluminum mast arm adapter secures fixture head to nominal 2" (2-3/8" O.D. pipe size) horizontal steel tenon arm.
Impact and UV resistant polycarbonate
GKOAL04100W27V50KDT3S-SQAL04DA
Replaces 250W PSMH
13,800 Lumens
100W
Universal (120V through 277V Operation)
5 Year
Yes
cULus, DLC Premium, Wet Locations
Medium bronze, rugged single-piece, die-cast aluminum with integral heat sink fins
Direct Pole Mount - (4" and 5" square and round poles) - Standard versatile mounting arm is simple to install and can be used with existing poles for retrofit installations.
Impact and UV resistant polycarbonate
C-AR-A-SAL3-S22L-SCCT-UL-BZ-DM
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5-year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing.
8-inch direct arm
Integrated UV stabalized polycarbonate diffuser lens with Type 3 optical distribution.
C-AR-A-SAL3-S22L-SCCT-UL-BZ-TR
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5-year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing.
Trunnion mount
Integrated UV stabalized polycarbonate diffuser lens with Type 3 optical distribution.
C-AR-A-SAL4-S22L-SCCT-UL-BZ-SF
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5-year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing.
2-inch adjustable slip fitter
Integrated UV stabilized polycarbonate diffuser lens with Type 4 optical distribution.
C-AR-A-SAL4-S22L-SCCT-UL-BZ-DM
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5-year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing.
8-inch direct arm
Integrated UV stabilized polycarbonate diffuser lens with Type 4 optical distribution.
C-AR-A-SAL4-S22L-SCCT-UL-BZ-TR
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5-year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing.
Trunnion mount
Integrated UV stabilized polycarbonate diffuser lens with Type 4 optical distribution.
C-AR-A-SAL5-S22L-SCCT-UL-BZ-SF
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5 Year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing
2-inch adjustable slip fitter
Integrated UV stabilized polycarbonate diffuser lens with Type 5 optical distribution.
C-AR-A-SAL5-S22L-SCCT-UL-BZ-DM
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5 Year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing
8-inch direct arm
Integrated UV stabilized polycarbonate diffuser lens with Type 5 optical distribution.
C-AR-A-SAL5-S22L-SCCT-UL-BZ-TR
Replaces 400W PSMH
Up to 23,200 Lumens
75W/107W/150W
Universal (120V - 277V)
5 Year
Yes
cULus, DLC Premium, RoHS, Wet Locations
Bronze, durable aluminum extruded heat sink and die-cast housing
Trunnion mount
Integrated UV stabilized polycarbonate diffuser lens with Type 5 optical distribution.
