GKOLED® | Up to 17,000 Lumens | GKOPTG Series LED Post Top Light | CCT & Wattage Selectable | Type V | 120v-277v | Black
Ships in: 3-5 Days
$419.99
SKU: GKOPTG1130W27VDDKB
Wattage Selectable: 45W, 70W, 87W, 130W
CCT Selectable: 3000K, 4000K or 5000K
CCT Selectable: 3000K, 4000K or 5000K
Product Overview

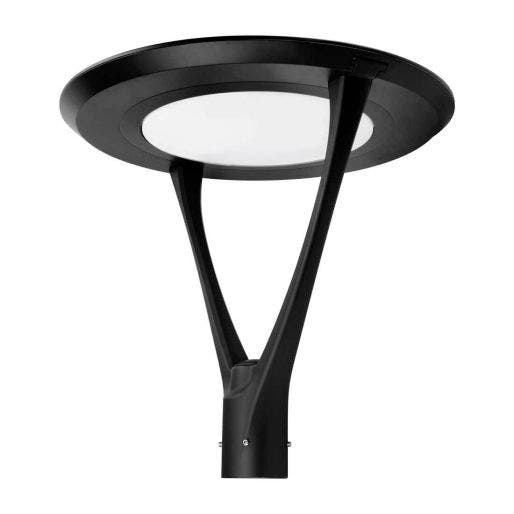

Our GKOLED® LED Post Top Light has field selectable CCT and wattage, delivers up to 17,000 lumens, black finish, 5-year limited warranty. Housing is completely sealed against moisture and environmental contaminants.
Additional benefits:
- CCT Selectable options of: 3000K, 4000K or 5000K
- Wattage Selectable options of: 45W, 70W, 87W, 130W
- Housing is completely sealed against moisture and environmental contaminants
Mounting guide by application:
Residential Street: Installation Height: 10-15 ft. / Recommended Interval: 25-40 ft.
Commercial Pedestrian Street: Installation Height: 15-20 ft. / Recommended Interval: 30-50 ft.
Parkway: Installation Height: 8-12 ft. / Recommended Interval: 20-30 ft.
Parking Lot / Square: Installation Height: 20-25 ft. / Recommended Interval: 50-70 ft.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Spec Sheet: GKOPTG Series Download File
- Instruction Manual: GKOPTG Series Download File
- IES Files: GKOPTG Series Download File
Specifications
- Applications General Area Lighting, Parking Areas, Perimeter Lighting
- Certifications UL Listed, Wet Locations, Dimmable
- Color Accuracy ≥ 70 CRI
- Dimensions 25-1/5" L x 25- 1/5" W x 24- 3/10" H
- Housing Rugged die-cast aluminum housing, 3G vibration rated for areas with traffic, meeting, Housing is completely sealed against moisture and environmental contaminants.
- Input Voltage Universal (120V - 277V)
- Lens Material Impact and UV-resistant polycarbonate lens
- Lifespan > 72,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output Up to 16,300 Lumens
- Mounting Details Standard 3" post top opening with included sleeve for 2-3/8" tenon mounting.
- Operating Temperature Range -40˚F to 113˚F (-40˚C to 45˚C).
- Power Consumption Up to 130W
- Replaces 400W MH
- Shipping Weight 25.70 (lbs.)
- Product Weight 25.7 lbs
- warranty 5 year
