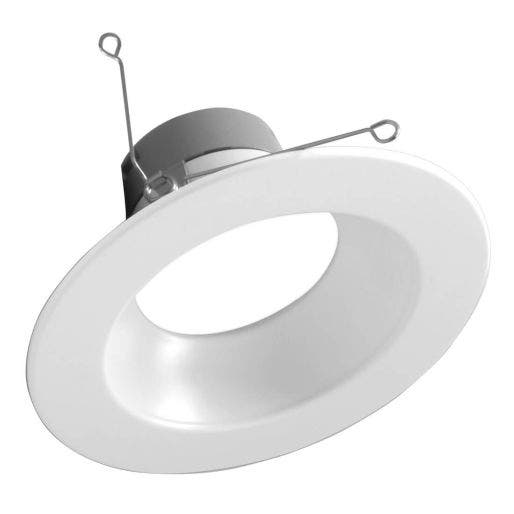

NICOR® 6-inch LED Downlight | DLR Series | CCT Selectable | Up to 962 Lumens | 10.3W | White
Ships in: Next Business Day
$27.99
SKU: DLR56609120SWH
Replaces 75W Incandescent
Up to 962 Lumens
Up to 962 Lumens
Product Overview
Replaces 75-watt Incandescent. 10.3W, 6-inch LED Downlight with the ability to adjust the CCT to 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers up to 962 lumens, cETLus Listed and dimmable down to 5%. 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: DLR56 Series Download File
- Spec Sheet: DLR4_DLR56 Series (DLRv6) Download File
- IES File: DLR56609120SWH 2700K Download File
- IES File: DLR56609120SWH 3000K Download File
- IES File: DLR56609120SWH 3500K Download File
- IES File: DLR56609120SWH 4000K Download File
- IES File: DLR56609120SWH 5000K Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Residential, Retail
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 12
- Certifications cETLus, Wet Locations, Dimmable, Title 20, RoHS
- Color Accuracy ≥ 90 CRI
- Dimensions 3-1/2" H x 7-1/2" Dia
- Housing Stamped aluminum trim routes heat away from electrical components; polymer driver cover for durability
- Input Voltage 120V
- Lens Material Polystyrene diffuser lens creates uniform distribution without sacrificing lumen output
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output Up to 962 Lumens
- Mounting Details Quick and easy installation with an IDEAL quick connector (Edison style socket included); dual torsion springs ensure flush fit to ceiling
- Operating Temperature Maximum 122°F (50°C)
- Operating Temperature Minimum 0°F (-18°C)
- Power Consumption 10.3W
- Replaces 75W Incandescent
- Shipping Weight 0.80 (lbs.)
- Typical Mounting Height 0 to 10 Feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
DLR56609120SWH
Replaces 75W Incandescent
Up to 962 Lumens
Up to 962 Lumens
10.3W
120V
5 Year
Yes
cETLus, Wet Locations, Dimmable, Title 20, RoHS
12
Stamped aluminum trim routes heat away from electrical components; polymer driver cover for durability
Quick and easy installation with an IDEAL quick connector (Edison style socket included); dual torsion springs ensure flush fit to ceiling
Polystyrene diffuser lens creates uniform distribution without sacrificing lumen output
Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
C-DL6-A
Replaces 65W Incandescent
650 Lumens
650 Lumens
8.6W
120V
5 Year
Yes
cULus, Damp Locations, ENERGY STAR®
N/A
N/A
N/A
N/A
N/A
CR6T-1650L-27K-1227
Replaces 120W Incandescent
1650 Lumens
1650 Lumens
19.5W LED
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
12
Durable upper housing protects LEDs, driver and power supply. One-piece aluminum lower reflector redirects light while also conducting heat away from LED
Adjustable flip clips provide retention for flush ceiling fit
Diffused polycarbonate
2700K
CR6T-1650L-35K-1227
Replaces 120W Incandescent
1650 Lumens
1650 Lumens
19.5W LED
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
12
Durable upper housing protects LEDs, driver and power supply. One-piece aluminum lower reflector redirects light while also conducting heat away from LED
Adjustable flip clips provide retention for flush ceiling fit
Diffused polycarbonate
3500K
CR6T-1650L-40K-1227
Replaces 120W Incandescent
1650 Lumens
1650 Lumens
19.5W LED
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
12
Durable upper housing protects LEDs, driver and power supply. One-piece aluminum lower reflector redirects light while also conducting heat away from LED
Adjustable flip clips provide retention for flush ceiling fit
Diffused polycarbonate
4000K
CR6T-1650L
Replaces 120W Incandescent
1650 Lumens
1650 Lumens
19.5W LED
Universal (120V - 277V)
5 Year
Yes
cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
12
Durable upper housing protects LEDs, driver and power supply. One-piece aluminum lower reflector redirects light while also conducting heat away from LED
Adjustable flip clips provide retention for flush ceiling fit
Diffused polycarbonate
N/A
