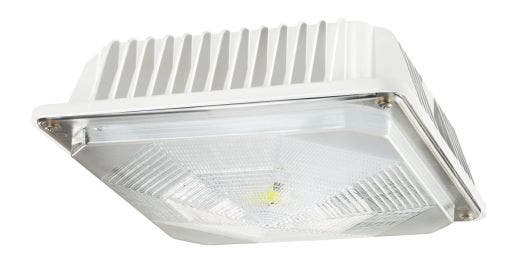

LED Square Canopy | E-CSA02 Series | Wide Distribution | 4000K | White

Write a Review
Questions & Answers
Lighting Layout Tool

This product has been discontinued

SKU: E-CSA02A-W40W

Replaces 70W PSMH
3000 Lumens

Product Overview

Replaces 70-watt pulse start metal halide (PSMH). 28-watt LED Canopy Light with 3000 delivered lumens. 4000K, white, DLC and UL Listed, 5-year limited warranty.

Features

Housing:

Low-copper, die-cast aluminum housing and lens frame
Textured black polyester powder-coat finish

Lens Assembly:

UV-stabilized acrylic prismatic refractor with self-retaining screws

Mounting:

3/4" conduit entry on top for pendant mounting 1/2" conduit entries on two sides

UL Listed:

Wet locations

Recommended Use

Security
Entryways
Perimeter lighting
Exterior canopies

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

IES: E-CSA02A-W40W Download File
Spec Sheet: E-CSA02A Download File
Instruction Manual: E-CSA02A Download File

Specifications

Applications Exterior Canopies, Perimeter Lighting, Security
Certifications UL Listed, DLC Standard, Wet Locations
Color Temperature (CCT) 4000K
CRI (Color Accuracy) ≥ 70 CRI
Input Voltage Universal (120V through 277V Operation)
Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25°C (77°F)
Light Output 3100 Lumens
Operating Temperature Maximum 104˚F (40˚C)
Operating Temperature Minimum -4˚F (-20˚C)
Power Consumption 28W
Replaces (Comparable to) 70W MH
Shipping Weight 6.38 (lbs.)
Typical Mounting Height 8 to 15 feet
warranty 5 Year
