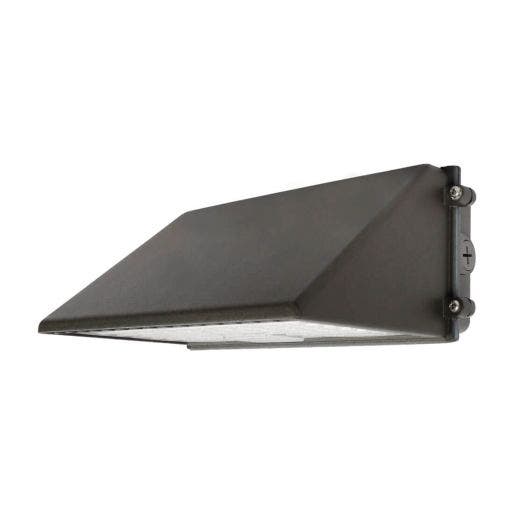

savr® Cutoff LED Wall Pack | E-WFC-B Series | 14,954 Lumens | 100W | 5000K | Bronze
$99.99
SKU: E-WFC15B-F50BZ
Replaces 400W MH
14,954 Lumens
14,954 Lumens
Product Overview
100W savr® Cutoff LED Wall Pack, 14,954 delivered lumens, bronze housing, 5000K, 3-year limited warranty.
Additional Benefits:
- Durable die-cast aluminum housing with bronze powder coated finish for corrosion resistance; stainless steel hardware
- UV-resistant polycarbonate refractor lens
- Architectural low-profile design
- Fully gasketed and sealed to provide wet location protection
- 0-10V dimming capable
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: E-WFC-B Series Download File
- IES File: E-WFC15B-F50BZ Download File
- Spec sheet: E-WFC-B Series Download File
Specifications
- Light Output 14,954 Lumens
- Power Consumption 100W
- Input Voltage Universal (120V - 277V)
- Dimensions 12-3/4" W x 7-1/2" W x 5-1/8" H
- Product Weight 3.9 lbs
- Shipping Weight 4.70 (lbs.)
- Housing Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
- Finish Color Bronze
- Case Quantity 4
- Mounting Details Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
- Typical Mounting Height 15 to 25 feet
- Certifications ETL Listed, Wet Locations, Dimmable, RoHS
- warranty 3 Year
- Color Accuracy ≥ 70 CRI
- Lens Material UV-resistant polycarbonate lens
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- FCC Compliance FCC Part 15, Subpart B, Class B limits for conducted and radiated emissions
- Applications Commercial, Perimeter Lighting, Security
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Case Quantity
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
E-WFC15B-F50BZ
Replaces 400W MH
14,954 Lumens
14,954 Lumens
100W
Universal (120V - 277V)
3 Year
Yes
ETL Listed, Wet Locations, Dimmable, RoHS
4
Durable die-cast aluminum housing with bronze powder coat finish to corrosion resistance
Can be mounted over a 3" octagonal or 4" square or octagonal j-box. Can also be mounted via surface conduit feed through one of the 3 x 1/2" knockouts located on the backbox.
UV-resistant polycarbonate lens
5000K
C-WP-A-ACWP-S17L-SCCT-BZ
Replaces 400W MH
Up to 16,700 Lumens
Up to 16,700 Lumens
80W/90W/100W/110W/120W
Universal (120V - 277V)
5-year
Yes
cULus, Wet Locations, Dimmable, DLC Premium, RoHS
2
Bronze die cast aluminum housing with heat fins to dissapate heat and improve life of the product.
Knockouts provided for mounting over a 3-1/2" or 4" octagonal or single gang junction box. Also comes with appropriate knockouts for mounting using conduit.
Integrated polycarbonate diffuser lens with individual optics for peak performance
Selectable, 3000K, 4000K, 5000K
