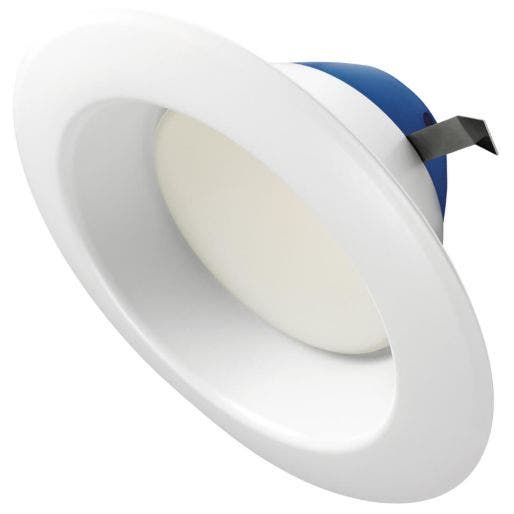

Cree Lighting® PRO Series 6-inch LED Downlight | CR6T Series | 2700K - 4000K | 19.5W | 1650 Lumens | White
$24.99 - $28.99
SKU: CR6T-1650L
Replaces 120W Incandescent
1650 Lumens
1650 Lumens
Product Overview
Replaces 120W Incandescent. 19.5W 6-inch LED Downlight with 1650 delivered lumens. 2700K - 4000K, cULus Listed, dimmable, 5-year limited warranty.
Additional Benefits:
Dimming:
- Dimmable to 5% with select incandescent dimmers (forward phase/triac and reverse phase only) at 120V only.
Includes:
- E26 base, GU24 Base and 277V connector with pigtails
Optical System:
- Unique combination of reflective and refractive optical components achieves a uniform, comfortable appearance while eliminating pixilation and color fringing
- Diffusing polycarbonate lens shields direct view of LEDs while lower reflector balances brightness of lens with the ceiling to create a low glare, high angle appearance
Guides & Info
- You must configure your product to download IES file.
- Spec Sheet: CR6T Series Download File
- Instruction Manual: CR6T Series (1200L & 1650L) Download File
- IES File: CR6T-1650L-27K-1227 Download File
- IES File: CR6T-1650L-30K-1227 Download File
- IES File: CR6T-1650L-35K-1227 Download File
- IES File: CR6T-1650L-40K-1227 Download File
Specifications
- Applications Commercial, Educational Setting, Offices, Residential, Retail
- FCC Compliance FCC Part 15, Subpart B, Class A limits for conducted and radiated emissions
- Case Quantity 12
- Certifications cULus, Wet Locations (Downlights Only), Dimmable, Title 20, Title 24, RoHS
- Color Accuracy ≥ 90 CRI
- Dimensions 7-3/8" Dia x 3-1/2" H
- Housing Durable upper housing protects LEDs, driver and power supply. One-piece aluminum lower reflector redirects light while also conducting heat away from LED
- Input Voltage Universal (120V - 277V)
- Lens Material Diffused polycarbonate
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25°C (77°F)
- Light Output 1650 Lumens
- Mounting Details Adjustable flip clips provide retention for flush ceiling fit
- Operating Temperature Maximum -95°F (35°C)
- Operating Temperature Minimum -13°F (-25°C)
- Power Consumption 19.5W LED
- Replaces 120W Incandescent
- Shipping Weight 0.92 (lbs.)
- Typical Mounting Height 0 to 10 Feet
- warranty 5 Year
