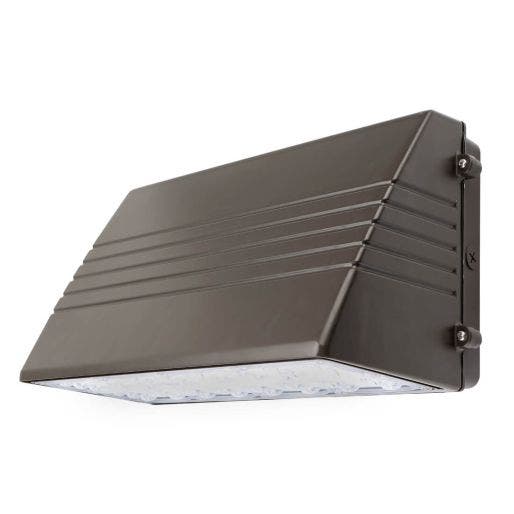

GKOLED® Cutoff LED Wall Pack | GKOWPG Series | 18,000 Lumens | 5000K | Bronze
Ships in: Next Business Day
$238.99
SKU: GKOWPG2135W27V50KD
Replaces 400W MH
18,000 Lumens
18,000 Lumens
Product Overview
Replaces 400-watt Metal Halide (MH). 135W GKOLED® Cutoff LED Wall Pack with 18,000 delivered lumens. 5000K, bronze, UL Listed and 5-year limited warranty.
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- IES File: GKOWPG2135W27V50KD Download File
- Spec Sheet: GKOWPG2 Series Download File
- Instruction Manual: GKOWPG90W_135W Download File
- Instruction Manual: GKOWPG2 Series Download File
Specifications
- Applications Perimeter Lighting, Security
- Certifications UL Listed, Wet Locations, DLC Standard, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 18-1/8" W x 9-3/4" H x 9" D
- Housing Bronze, Rugged die-cast aluminum housing
- Input Voltage Universal (120V through 277V Operation)
- Lens Material Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
- Lifespan Estimated > 50,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
- Light Output 18,000 Lumens
- Mounting Details Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F(-40°C)
- Power Consumption 70W
- Replaces 400W MH
- Shipping Weight 10.95 (lbs.)
- Typical Mounting Height 8 to 20 feet
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
GKOWPG2135W27V50KD
Replaces 400W MH
18,000 Lumens
18,000 Lumens
70W
Universal (120V through 277V Operation)
5 Year
No
UL Listed, Wet Locations, DLC Standard, RoHS
Bronze, Rugged die-cast aluminum housing
Easy install over a j-box or with surface conduit utilizing one of the provided threaded knockouts
Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing
5000K
GKOWPG3135W27VDDKD
Wattage Selectable: 54W, 81W, 108W, 135W
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field
Up to 135W
Universal (120V - 277V)
5 year
Yes
UL Listed, Wet Locations, Dimmable
Dark Bronze, Rugged die-cast aluminum housing, Housing has direct contact with the driver to help maintain low temperature and long lifespan.
Wall mounting or Junction box mounting
Impact-resistant UV-coated polycarbonate lens
Selectable, 3000K, 4000K, 5000K
C-WP-C-RDC-S16L-SCCT-DB
Replaces 400W MH
Up to 16,000 Lumens
Emergency battery backup option available
Up to 16,000 Lumens
Emergency battery backup option available
Up to 110W
Universal (120V - 277V)
5-year
No
cULus, Wet Locations, DLC Standard, RoHS
Heavy duty die-cast aluminum with a durable powder coat dark bronze finish.
1/2-inch threaded knockouts provided for conduit entry or mount over a recessed j-box. Knockouts are located on both sides and the top of the back box.
Integrated UV stabilized polycarbonate lens, designed to control the light and offer the most efficiency.
Selectable, 3000K, 4000K, 5000K
