GKOLED® | Up to 20,000 Lumens | GKOWPG3 Series Cutoff LED Wall Pack | Up to 135W | 3000K, 4000K or 5000K | 120v-277v | Dark Bronze

Write a Review
Questions & Answers
Lighting Layout Tool

Ships in: 3-5 Days

$234.99

Knock this price down to $211.49. Join e-cono+ for free today Sign up >.

SKU: GKOWPG3135W27VDDKD

Wattage Selectable: 54W, 81W, 108W, 135W
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field

Add to Favorites/Create a Quote

Product Overview

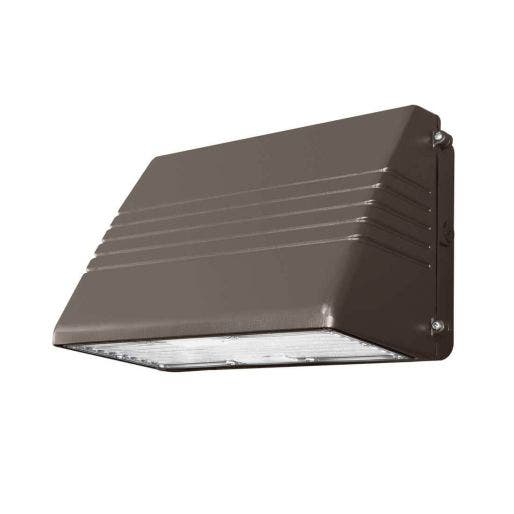

Our up to 135W GKOLED® Cutoff LED Wall Pack has field selectable CCT and wattage, capable of wall mounting or junction box mounting, delivers up to 20,000 lumens, dark bronze finish, 5-year limited warranty.

Additional benefits:

CCT Selectable options of: 3000K, 4000K or 5000K
Housing is completely sealed against moisture and environmental contaminants
0-10V Dimmable- Dimming with dimming leads available for use in the field

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Guides & Info

Spec Sheet: GKOWPG3 Series Download File
Instruction Manual: GKOWPG3 Series Download File
IES Files: GKOWPG3135W27VDDKD Download File

Specifications

Light Output Up to 20,000 Lumens
Power Consumption Up to 135W
Operating Temperature Range -40˚F to 113˚F (-40˚C to 45˚C)
Input Voltage Universal (120V - 277V)
Dimensions 18-1/10" L x 9-1/2" W x 9-3/4" H
Product Weight 10.47 lbs
Shipping Weight 10.47 (lbs.)
Housing Dark Bronze, Rugged die-cast aluminum housing, Housing has direct contact with the driver to help maintain low temperature and long lifespan.
Finish Color Dark Bronze
Mounting Details Wall mounting or Junction box mounting
Certifications UL Listed, Wet Locations, Dimmable
warranty 5 year
Color Accuracy ≥ 70 CRI
Lens Material Impact-resistant UV-coated polycarbonate lens
Lifespan Estimated > 72,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)
Applications Perimeter Lighting, Security

How much light do you need? Create a custom plan with our simple free tools.

INDOOR LIGHTING LAYOUT TOOL > OUTDOOR LIGHTING LAYOUT TOOL >

Product Comparison

Product

SKU

Short Description

Power Consumption

Input Voltage

warranty

Dimmable

Certifications

Housing

Mounting Details

Lens Material

Color Temperature (CCT)

Additional Documents

$234.99

GKOWPG3135W27VDDKD

Wattage Selectable: 54W, 81W, 108W, 135W
CCT Selectable: 3000K, 4000K or 5000K
0-10V Dimmable to 10%- 0-10v - Dimming with dimming leads available for use in the field

Up to 135W

Universal (120V - 277V)

5 year

Yes

UL Listed, Wet Locations, Dimmable

Dark Bronze, Rugged die-cast aluminum housing, Housing has direct contact with the driver to help maintain low temperature and long lifespan.

Wall mounting or Junction box mounting

Impact-resistant UV-coated polycarbonate lens

Selectable, 3000K, 4000K, 5000K
