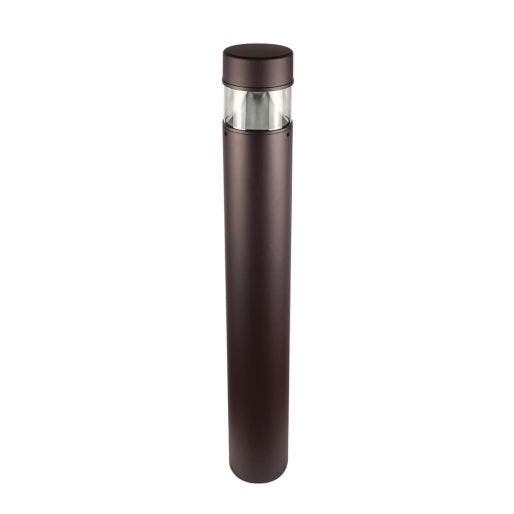

C-Lite LED Pathway Light | 42-inch | C-BD-A-BLD Series | 20W | 4000K | Medium Bronze
This product has been discontinued
SKU: C-BD-A-BLD-2L-40K-T5-42-MB
Replaces 100W PSMH
2450 Lumens
2450 Lumens
Product Overview
Replaces 100-watt Pulse Start Metal Halide (PSMH). 20-watt, 42-inch LED Pathway Light with 2450 delivered lumens. 4000K, cULus Listed, 5-year limited warranty.
Added Benefits:
- Features quick connect for easy install
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Guides & Info
- Instruction Manual: C-BD-A-BLD Series Download File
- Spec Sheet: C-BD-A-BLD Series Download File
- IES File: C-BD-A-BLD-2L-40K-T5-42-xx Download File
- Informational Sheet: C-BD-A-BLD Series Download File
Specifications
- Applications Entryways, Pathways & Walkways, Perimeter Lighting, Security
- Certifications cULus, Wet Locations, RoHS
- Color Accuracy ≥ 70 CRI
- Dimensions 42" H x 5-3/4" Dia
- Housing Highly durable die-cast aluminum with a medium bronze powder coat finish
- Input Voltage Universal (120V through 277V Operation)
- Lens Material UV stabilized polycarbonate
- Lifespan Estimated > 100,000 hours of maintenance-free operation to L70 at 25˚C (77˚F)Universal (120V through 277V Operation)
- Light Output 2450 Lumens
- Mounting Details Mounts using included anchor bolts, 3 bolt system
- Operating Temperature Maximum 104°F (40°C)
- Operating Temperature Minimum -40°F (-40°C)
- Power Consumption 20W LED
- Replaces 100W PSMH
- Shipping Weight 10.10 (lbs.)
- Typical Mounting Height Ground Level
- warranty 5 Year
How much light do you need? Create a custom plan with our simple free tools.
Customers Reviews
Questions & Answers
Product Comparison
Product
SKU
Short Description
Power Consumption
Input Voltage
warranty
Dimmable
Certifications
Housing
Mounting Details
Lens Material
Color Temperature (CCT)
Additional Documents
C-BD-A-BLD-2L-40K-T5-42-MB
Replaces 100W PSMH
2450 Lumens
2450 Lumens
20W LED
Universal (120V through 277V Operation)
5 Year
No
cULus, Wet Locations, RoHS
Highly durable die-cast aluminum with a medium bronze powder coat finish
Mounts using included anchor bolts, 3 bolt system
UV stabilized polycarbonate
4000K
C-Lite Square LED Bollard | CCT & Wattage Selectable | C-BD-A-BP Series | Up to 3000 Lumens | Bronze Your Price $264.99 $299.99
C-BD-A-BPSQ-S3L-SCCT-UL-BZ
Replaces 100W PSMH
Up to 3000 Lumens
Up to 3000 Lumens
Up to 24W
Universal (120V - 277V)
5-Year
Yes
UL Listed, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
Die-cast aluminum housing powder coated with bronze
Mounts using anchor bolts, 4 bolt system
High impact polycarbonate lens
Selectable, 3000K, 4000K, 5000K
C-Lite Round LED Bollard | CCT & Wattage Selectable | C-BD-A-BP Series | Up to 3000 Lumens | Bronze Your Price $229.99 $259.99
C-BD-A-BPRD-S3L-SCCT-UL-BZ
Replaces 100W PSMH
Up to 3000 Lumens
Up to 3000 Lumens
Up to 24W
Universal (120V - 277V)
5-Year
Yes
UL Listed, Wet Locations, Dimmable, DLC Premium, RoHS, IP65
Die-cast aluminum housing powder coated with bronze
Easy install using supplied anchor bolts, 3 bolt system.
High impact polycarbonate lens
Selectable, 3000K, 4000K, 5000K
